企业快讯 | 天亿照明经典项目案例展示(五)
发布时间:2019/08/02
项目案例
Classic case
案例名称:水贝金座大厦泛光照明工程
Case Name: Flood lighting project of Shuibei Golden Tower
案例地址:深圳市罗湖区贝丽北路73号
Case Address: No.73, north road of Beili, luohu district, Shenzhen
案例面积:12580㎡
Case Area: 12,580 ㎡
招标单位:深圳特力吉盟投资有限公司
Tender: Shenzhen Teligimeng investment co., LTD
施工单位:深圳市天亿照明工程有限公司
Construction unit: Shenzhen Tianyi Lighting Engineering co., LTD
设计理念
Design Philosophy
“中国珠宝看深圳,深圳珠宝看水贝”,珠宝的魅力在于挖掘粗糙而原始材料的潜质,通过设计和品牌包装,让它们精致而充满创意,优雅洁净而充满美感。设计概念正来源于丝绸的皱褶产生的肌理,轻薄 、色彩绚丽 ; 珍珠的尊贵与优雅的气质。无论是夜晚,或是白天阳光耀眼之时,这个独特的建筑表皮都是最夺目的存在。"Chinese jewelry see Shenzhen, shenzhen jewelry see Shui bei", The charm of jewelry lies in the potential of rough and original materials. Through design and brand packaging, it makes them delicate and full of creativity, elegant, clean and full of beauty. The design concept is derived from the texture produced by the folds of silk, which is light and colorful. The dignity and elegance of pearls. This unique facade is the most striking presence at night and during the day when the sun shines brightly.
灯 具 选 型
Selection of Lamps

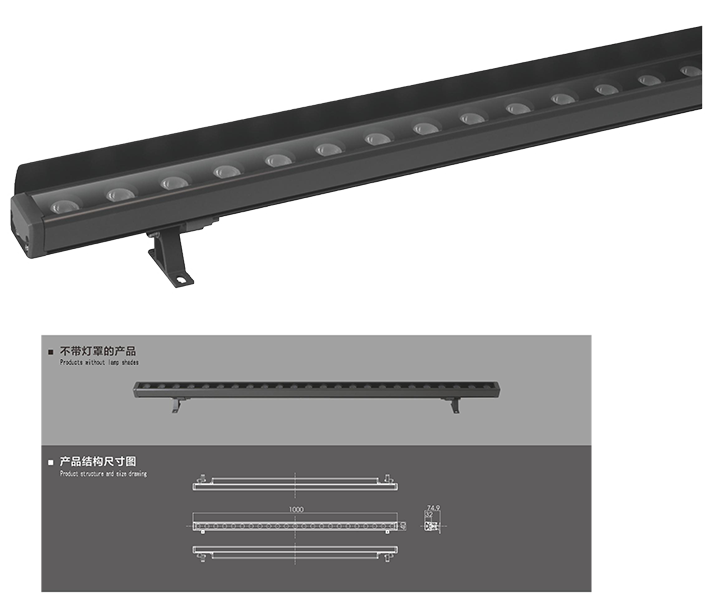

LED洗墙灯
LED WALL WASHER
参数规格 SPECIFICATION
产品型号(Product Name):TY-DGB-14
产品规格(Product Specification):L1000×W40×H32mm
工作电压(Working Voltage):DC24V
额定功率(Rated Power):24-30W
LED数量(LED count):24-30PCS
颜色(Color):W、Y、R、G、B、全彩(full color)
灯体材质(Lamp body material):铝(Al)+钢化玻璃(tempered glass)
环境温度(Ambient temperature):-20℃~+45℃
控制方式(Control mode):DMX512控制(DMX512 Control)
光源寿命(Light source life):>30000H

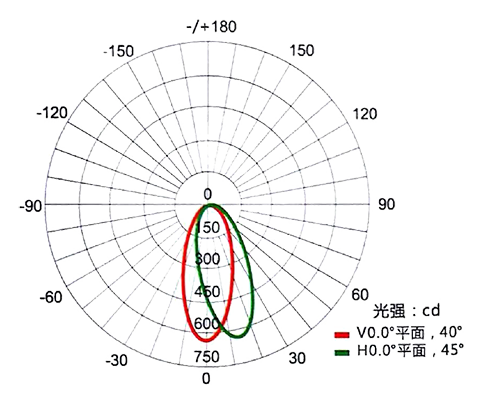

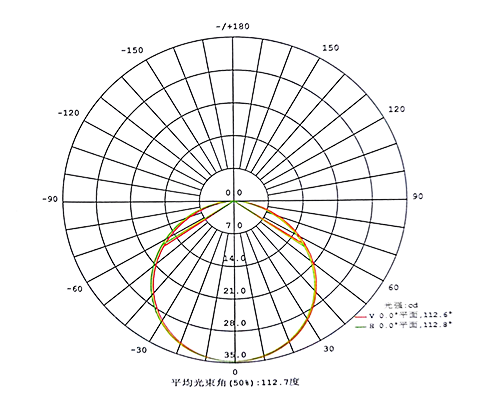

配光曲线 DISTRIBUTION DIAGRAM

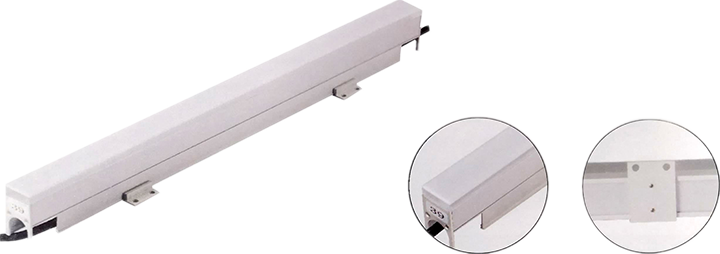

LED线条灯
LED LINEAR LIGHT
参数规格 SPECIFICATION
产品型号(Product Name):TY-XTD-L7C
产品规格(Product Specification):L500×W28×H48mm
工作电压(Working Voltage):DC24V
额定功率(Rated Power):24W-36W
颜色(Color):W、Y、R、G、B、全彩(full color)
灯体材质(Lamp body material):铝(Al)+PMMA
环境温度(Ambient temperature):-40℃~+50℃
控制方式(Control mode):DMX512控制(DMX512 Control)
光源寿命(Light source life):>30000H
配光曲线 DISTRIBUTION DIAGRAM

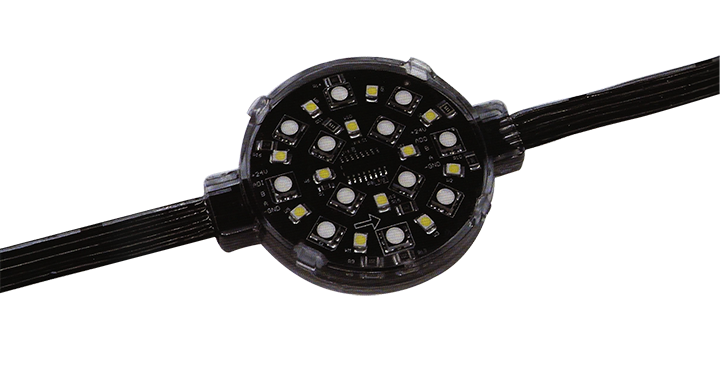

LED点光源
LED POINT LIGHT
参数规格 SPECIFICATION
产品型号(Product Name):TY-DGC-60
产品规格(Product Specification):φ60.1×15(mm)
工作电压(Working Voltage):DC24V
额定功率(Rated Power):3.84 W
颜色(Color):W、Y、R、G、B、RGB/RGBW
灯体材质(Lamp body material):共混改性工程塑料
环境温度(Ambient temperature):-40℃~+55℃
控制方式(Control mode):DMX512控制(DMX512 control)

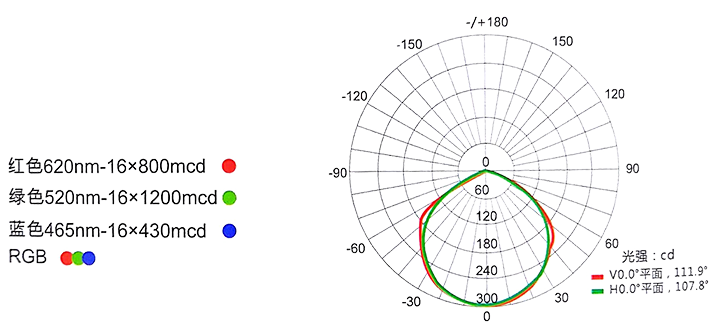

配光曲线 DISTRIBUTION DIAGRAM

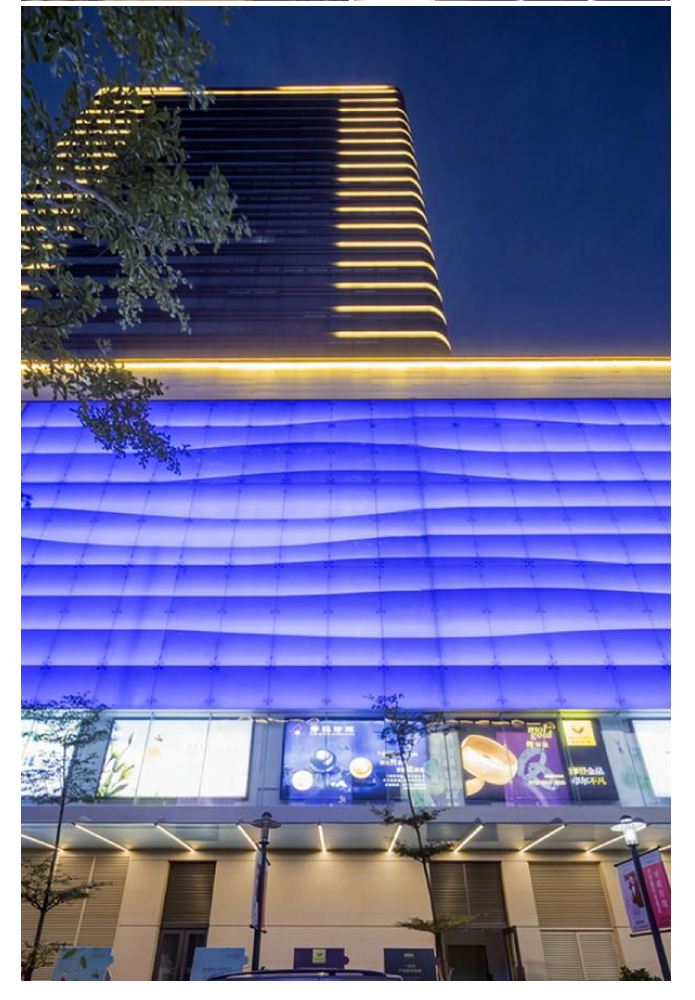

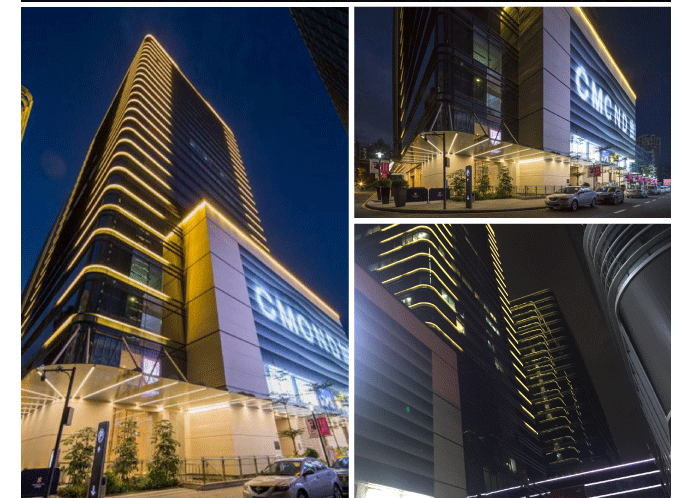

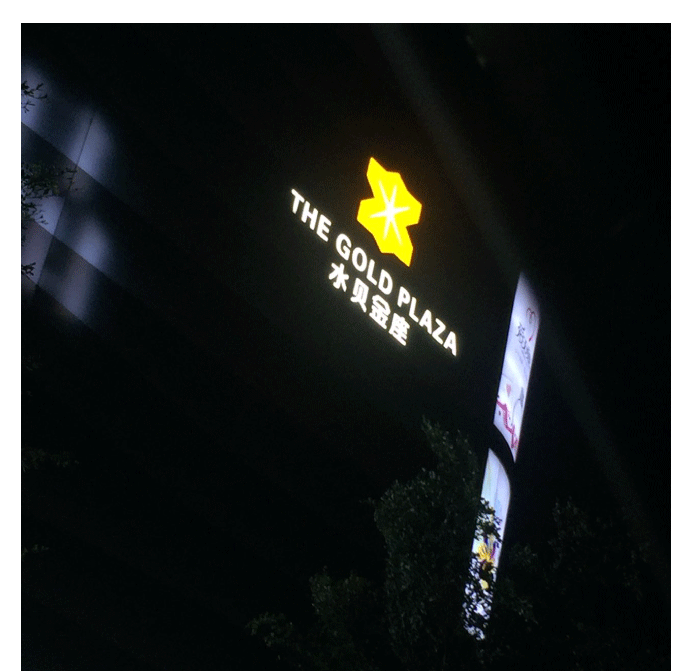

亮 化 实 景 图 Lighting Real Diagram
